Goof Proof Linear Drain by Mark E. Industries

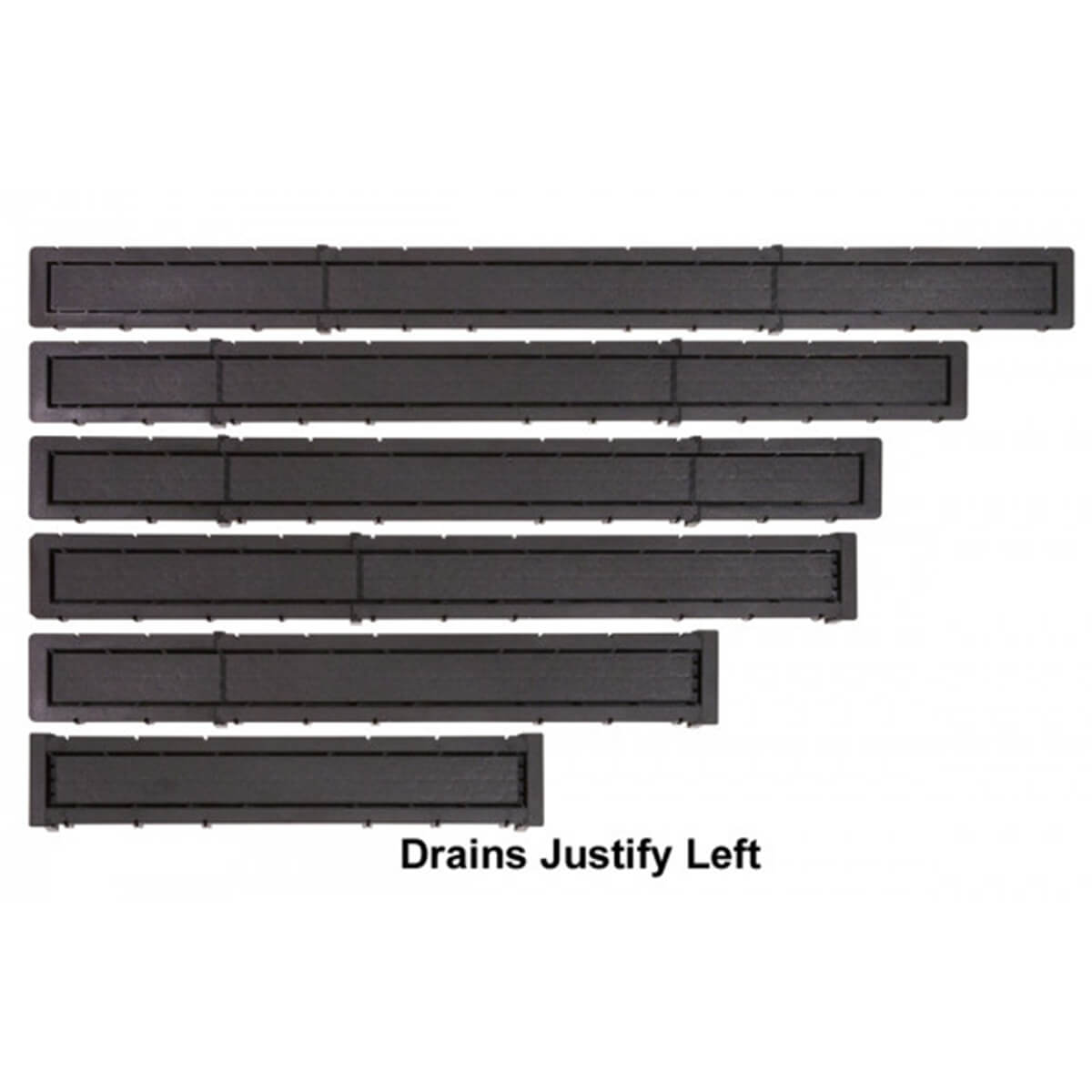

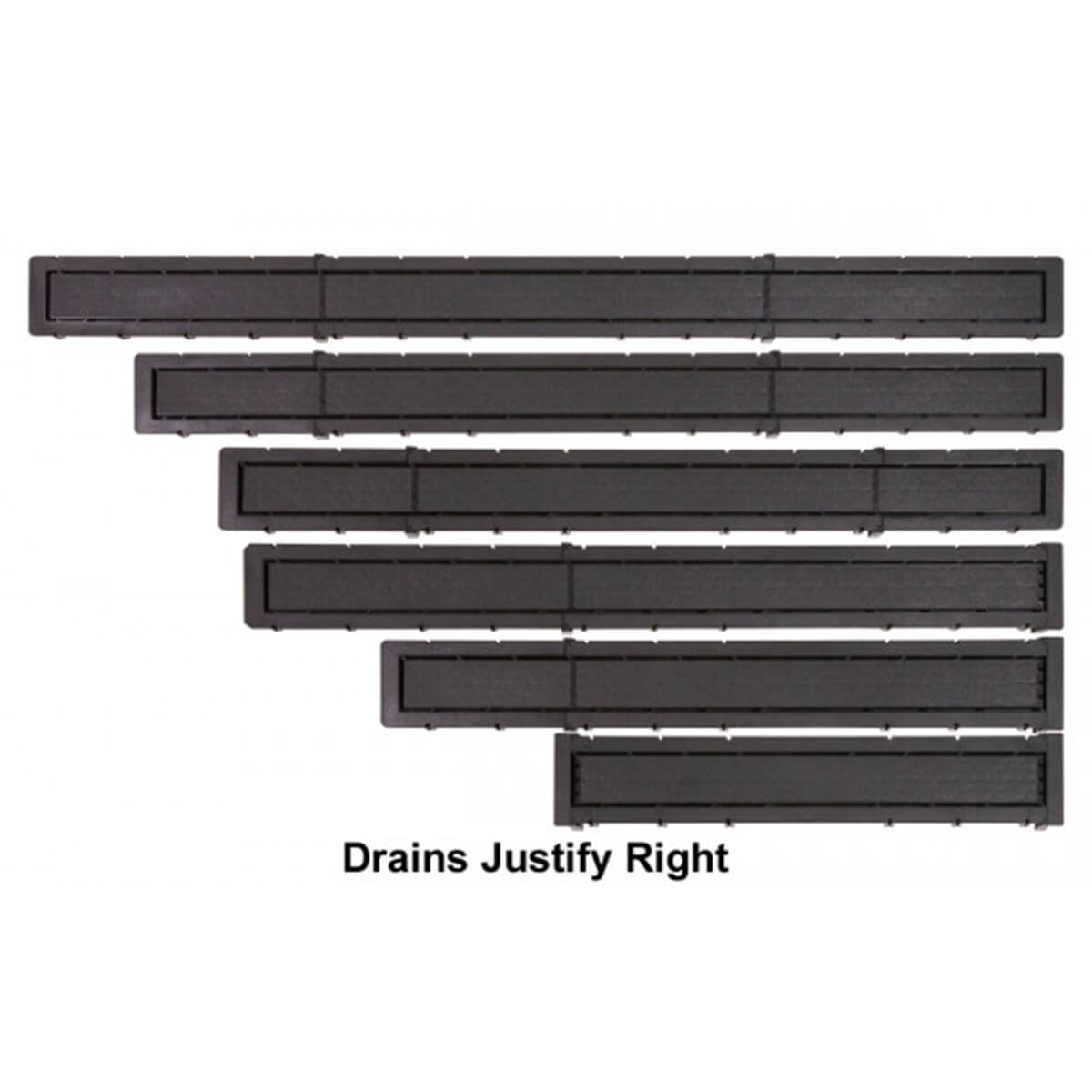

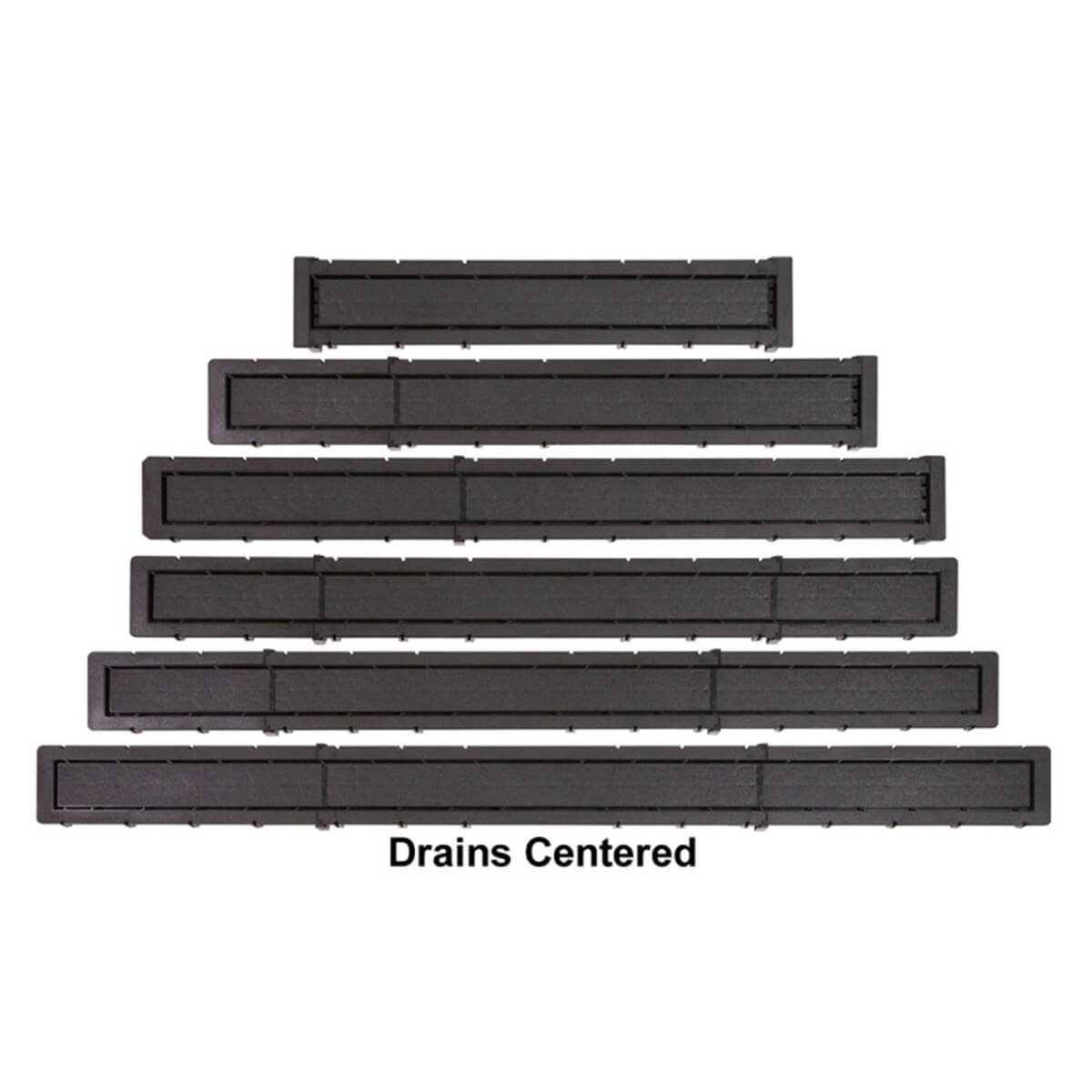

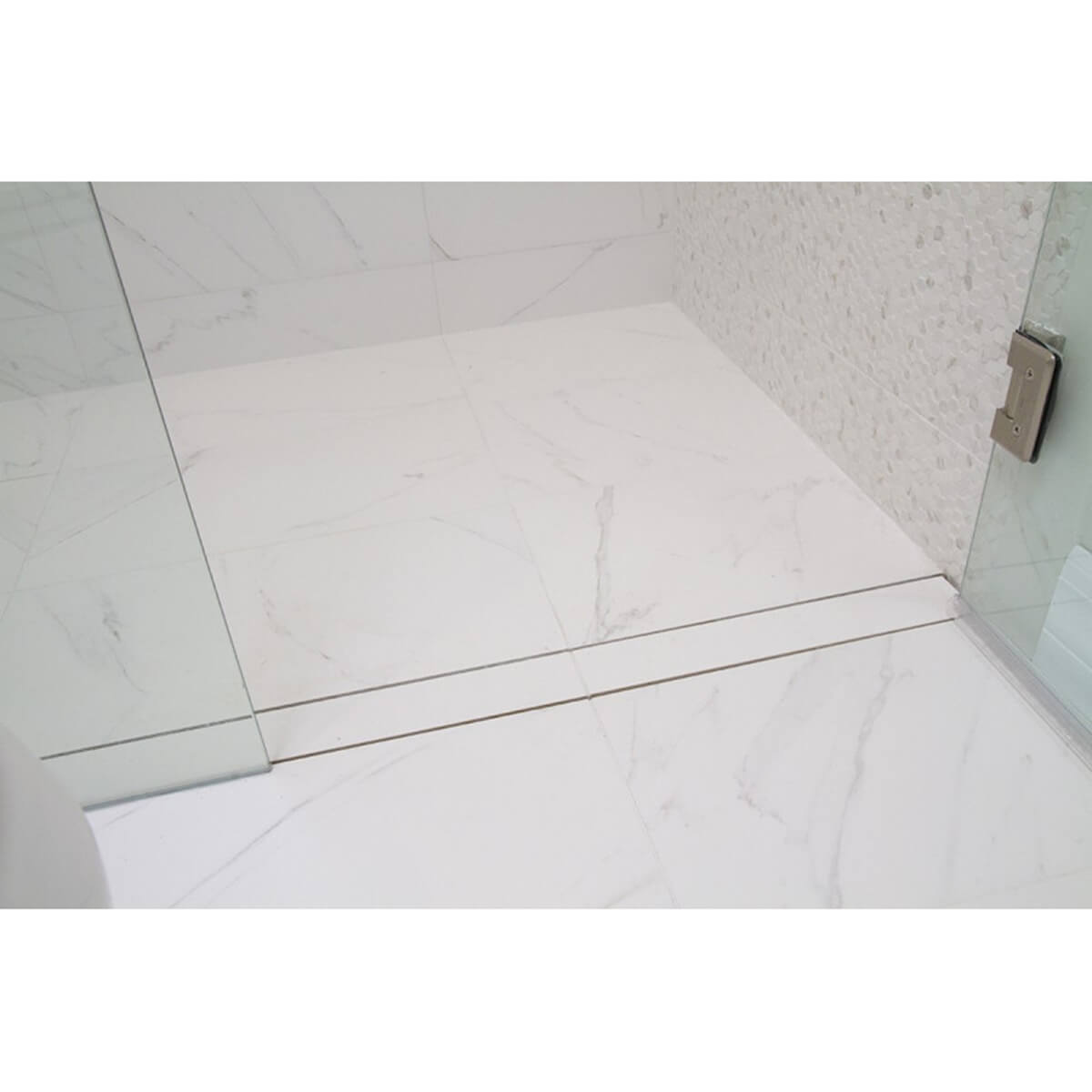

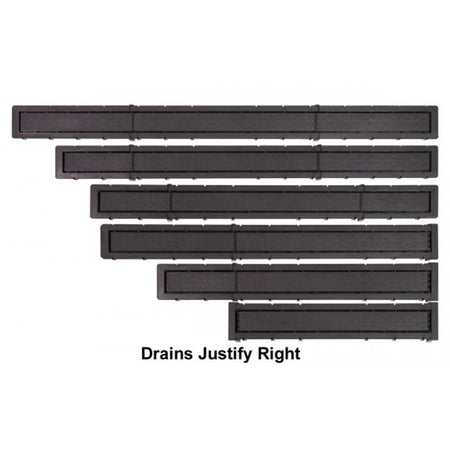

Mark E. Industries has introduced a linear drain that can be customized to 6 different lengths and offers center drain or left and right offset drain options. The Goof Proof linear drain length can range from 27" to 60" and has a tile-on insert top for receiving matching tile for a sleek, innovative tiled shower.
Features
- Comes complete with all components for linear drain installation
- Can be used with any waterproofing method including roll-on, vinyl and sheet membrane

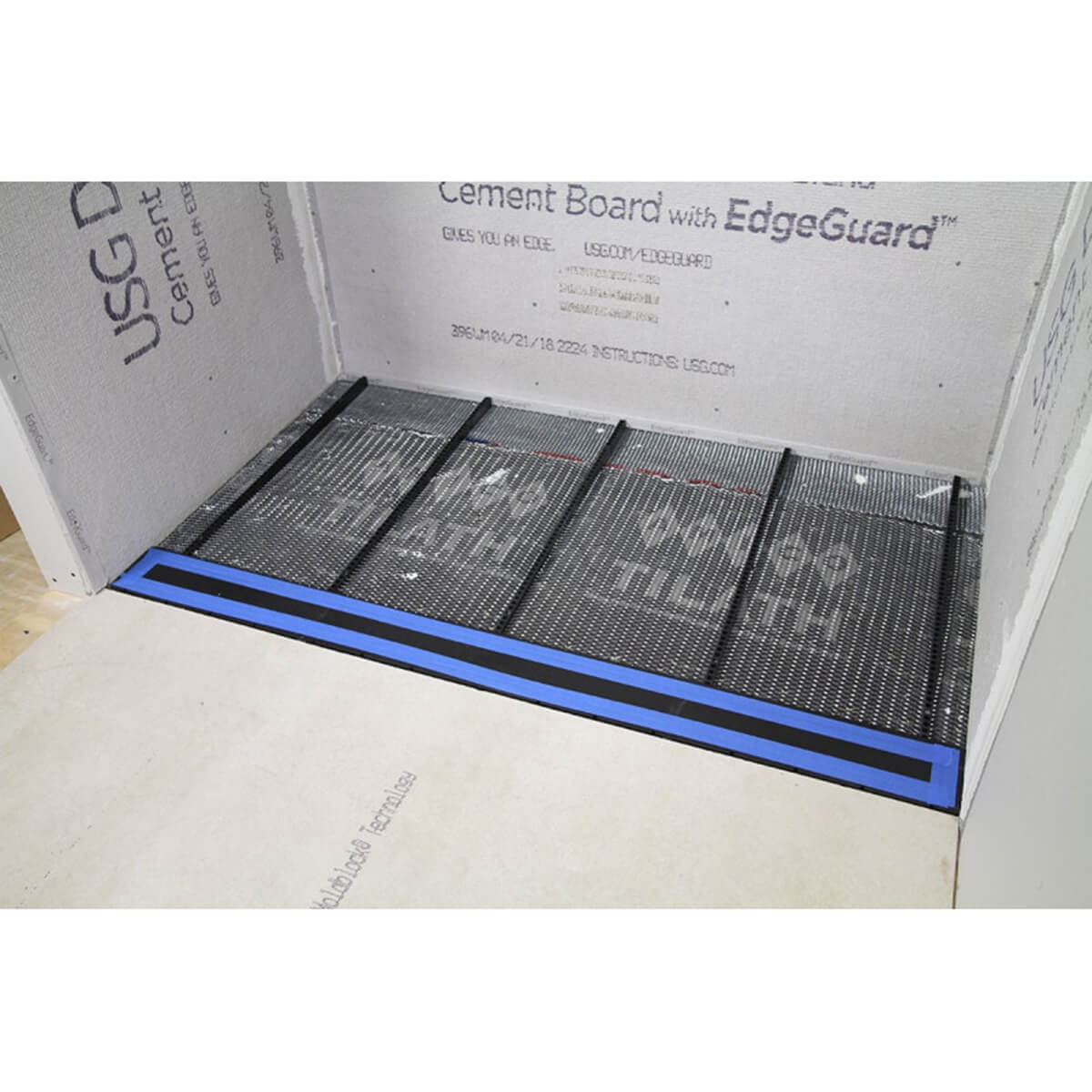

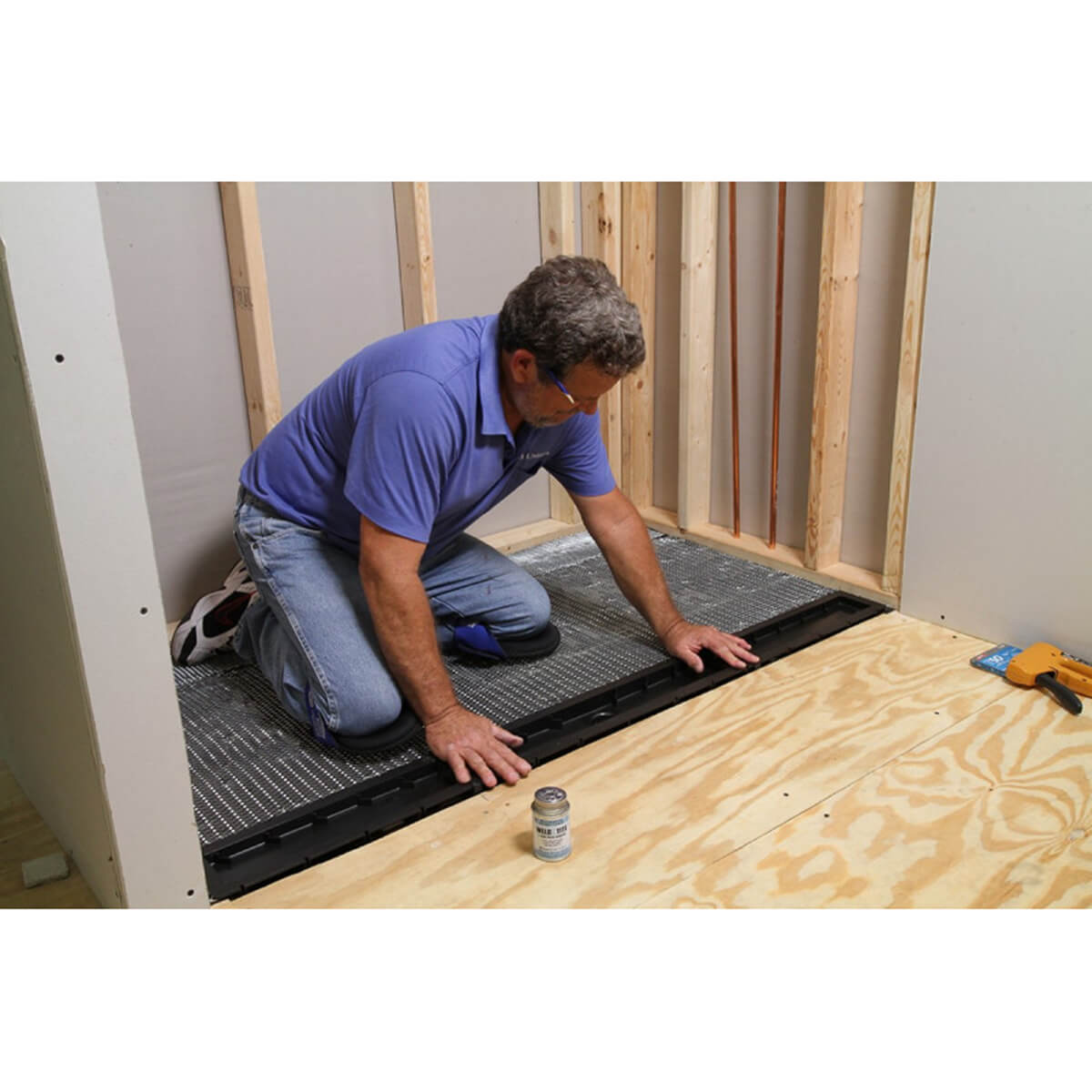

- Equipped with slots that can receive the Quick Pitch Shower Floor Drainage Kit for a pitched shower pan
- Can be installed with or without a curb to create a barrier free shower

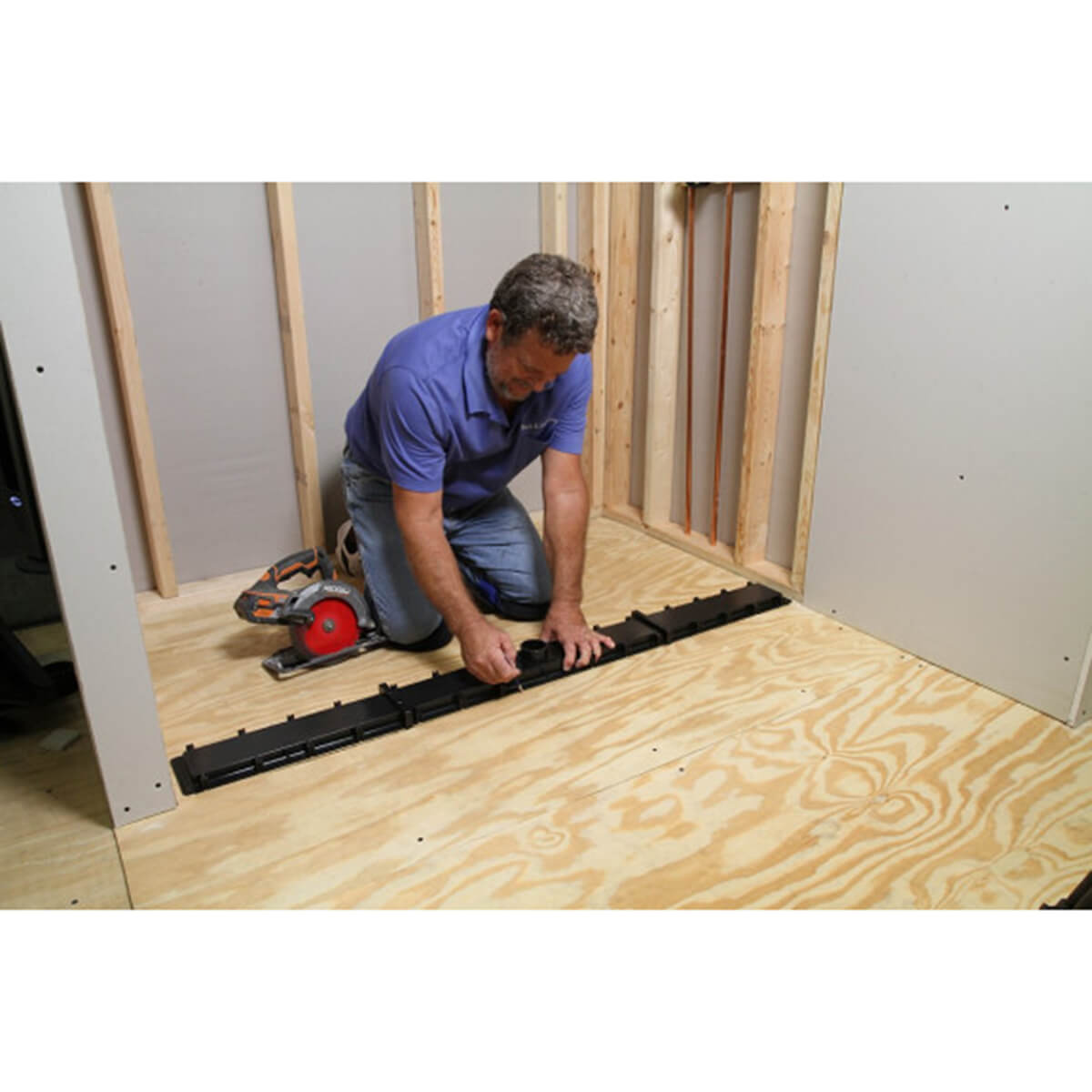

- Linear drain must be recessed into the subfloor for either wood or concrete applications

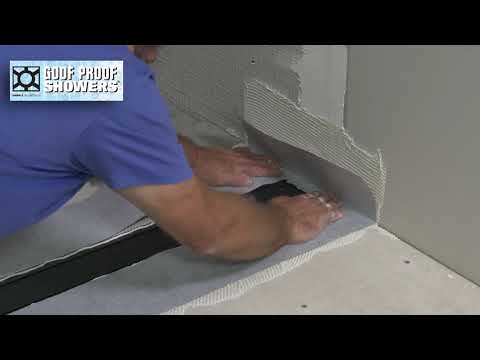

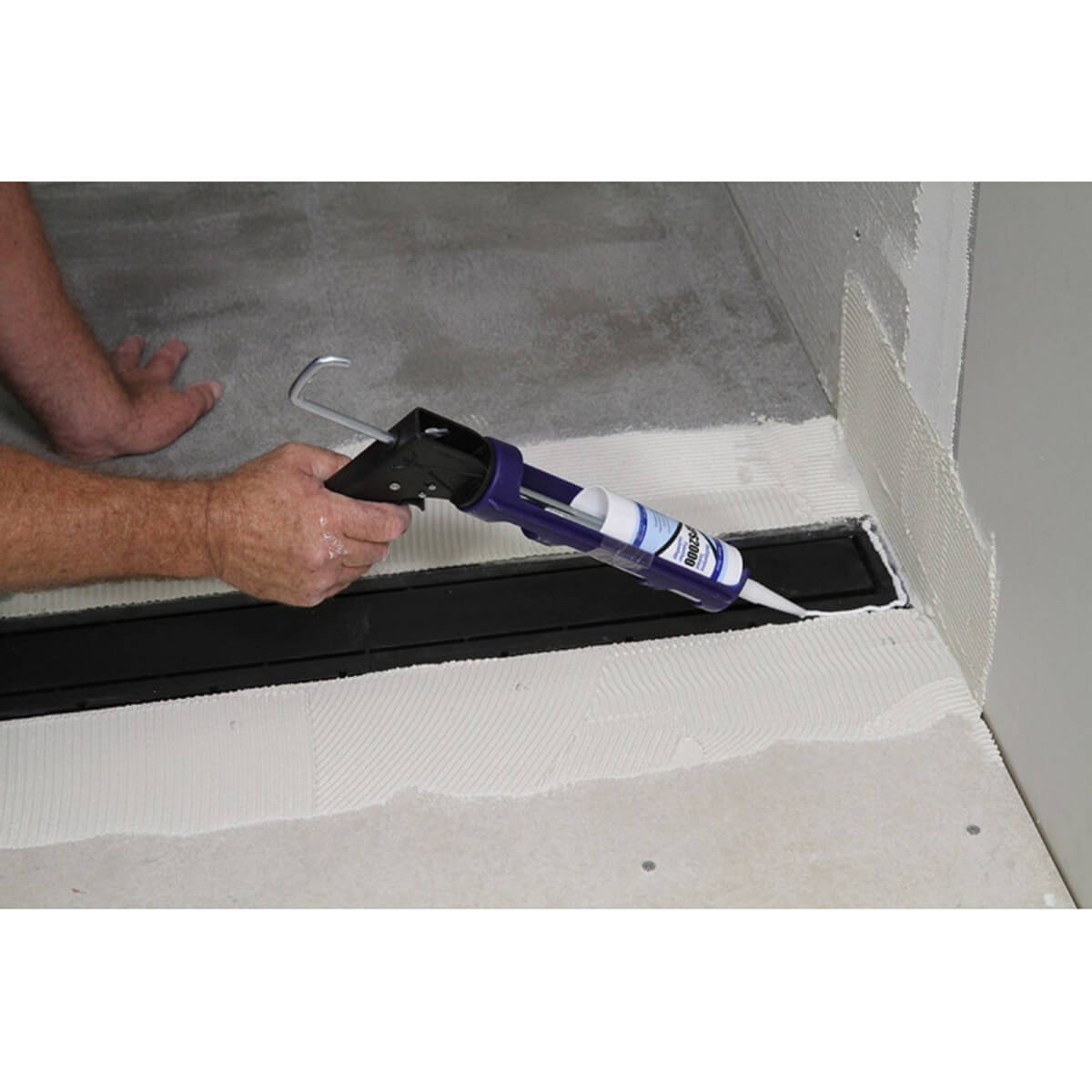

- Multipurpose sealant cartridge is designed for use with the fabric linear drain collar

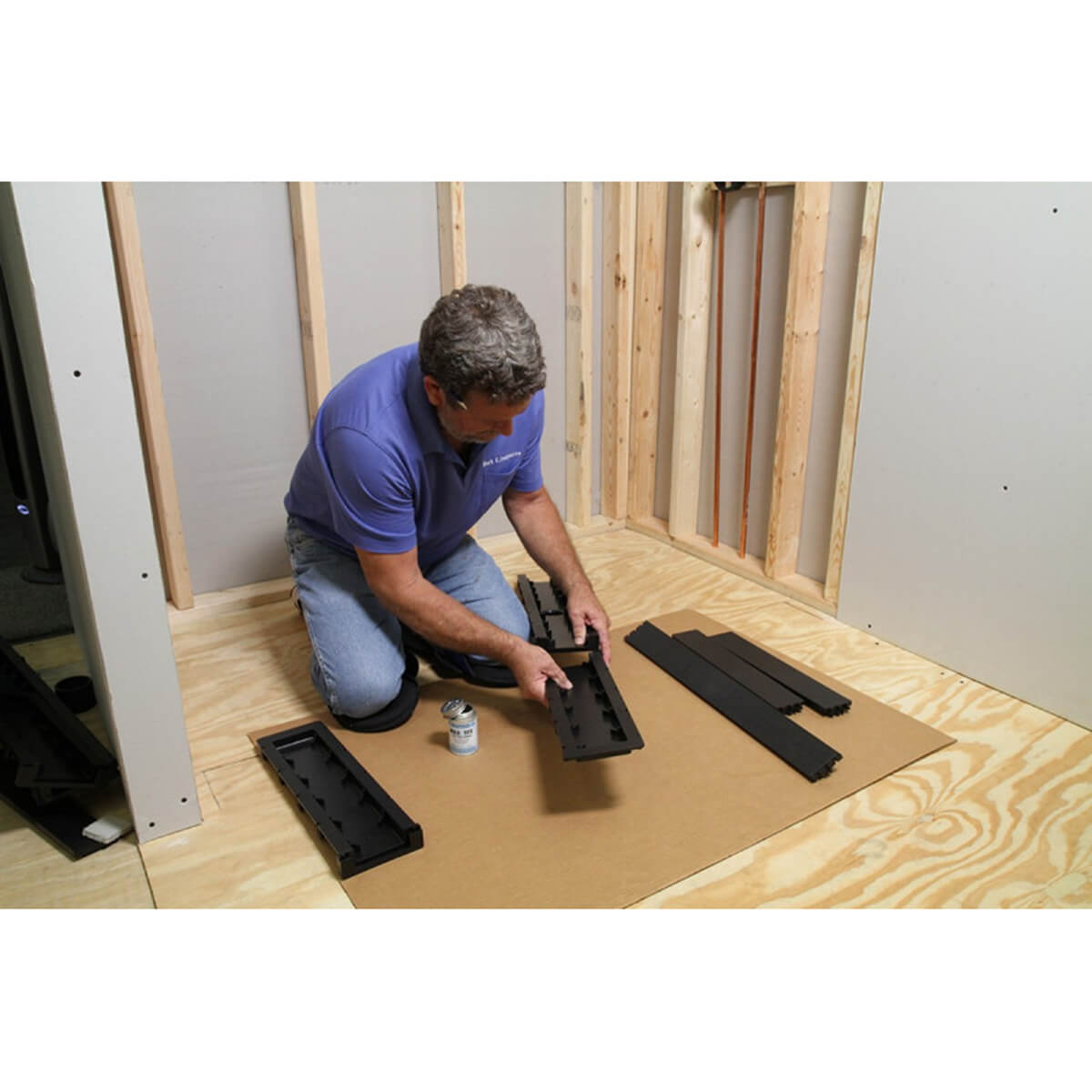

- Pipe glue is for gluing all corresponding pieces of the linear drain together and on the drain coupling

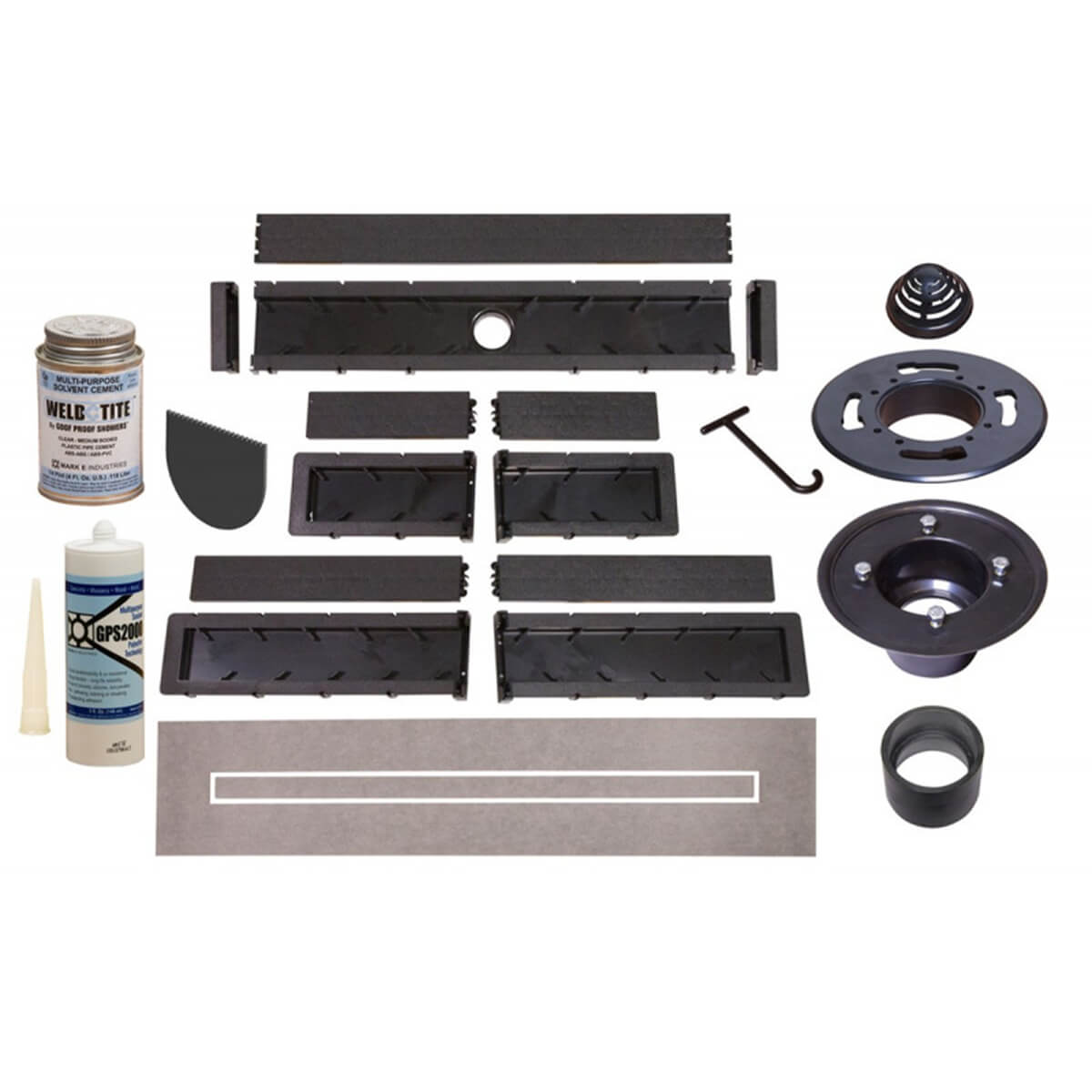

What's Included?
- (1) Main Drain Section with Insert
- (2) End Caps
- (2) 15-1/2" Extensions with Inserts
- (2) 9" Extensions with Inserts
- (1) Drain Flange Assembly with non-threaded Clamping Ring
- (1) Coupling
- (1) Hair Trap
- (1) Insert Removal Tool
- (1) Disposable 1/16" Square Notched Trowel
- (1) GPLDC-69" x 15" Linear Drain Collar
- (1) GPS-2000 Sealant Cartridge
- (1) GPMPSC 4 oz. Can of PVC/ABS Pipe Glue
- Installation Instructions and DVD
| Drain Lengths |
Width |
| Outer Diameter |
Inner Diameter
(Trough) |
Outer Diameter |
Inner Diameter |
| 27-3/4" |
26" |
5" |
3-1/8" |
| 36-7/8" |
35" |
5" |
3-1/8" |
| 43-7/16" |
41-7/16" |
5" |
3-1/8" |
| 46" |
44" |
5" |
3-1/8" |
| 52-1/2" |
50-1/2" |
5" |
3-1/8" |
| 59-1/16" |
57-1/16" |
5" |
3-1/8" |
