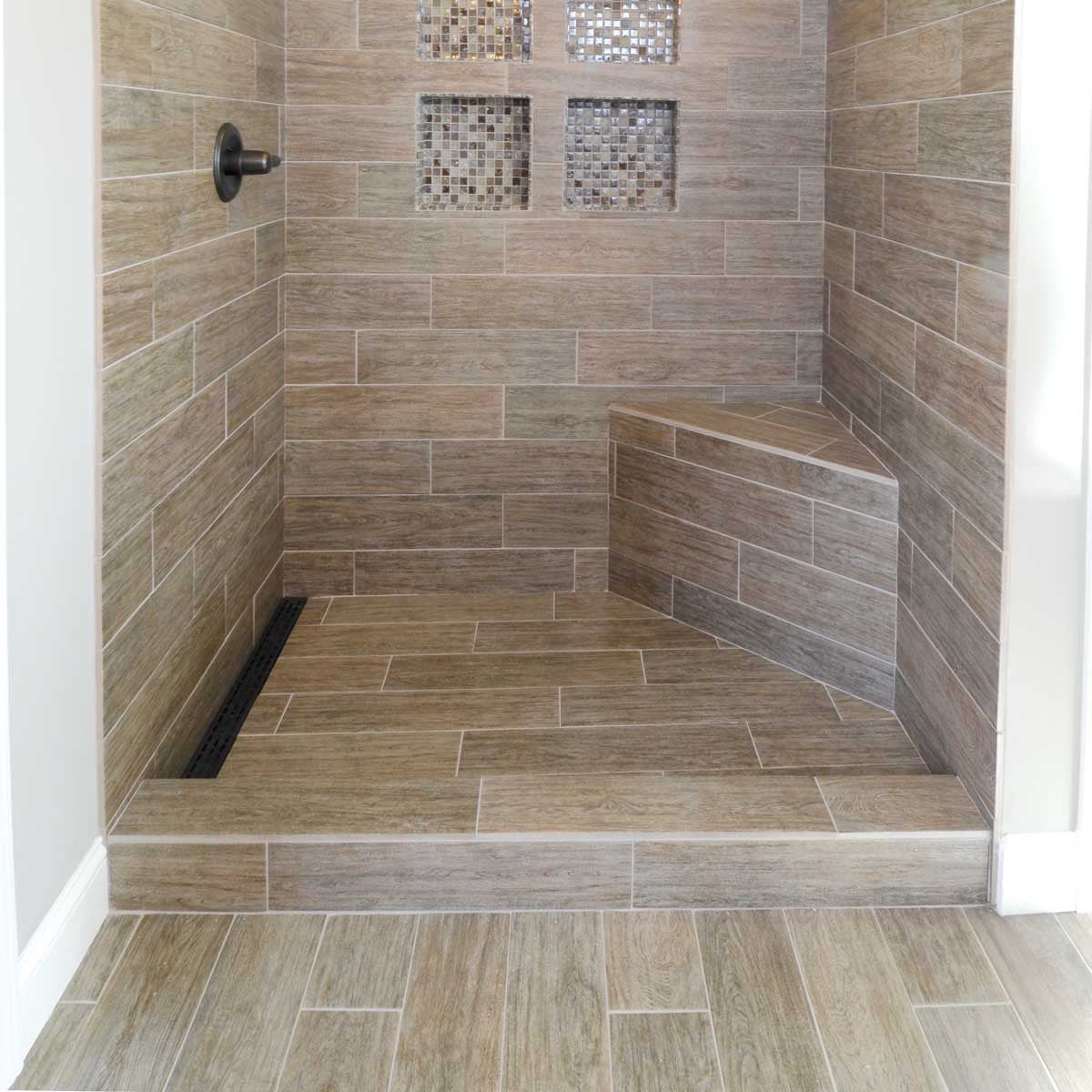

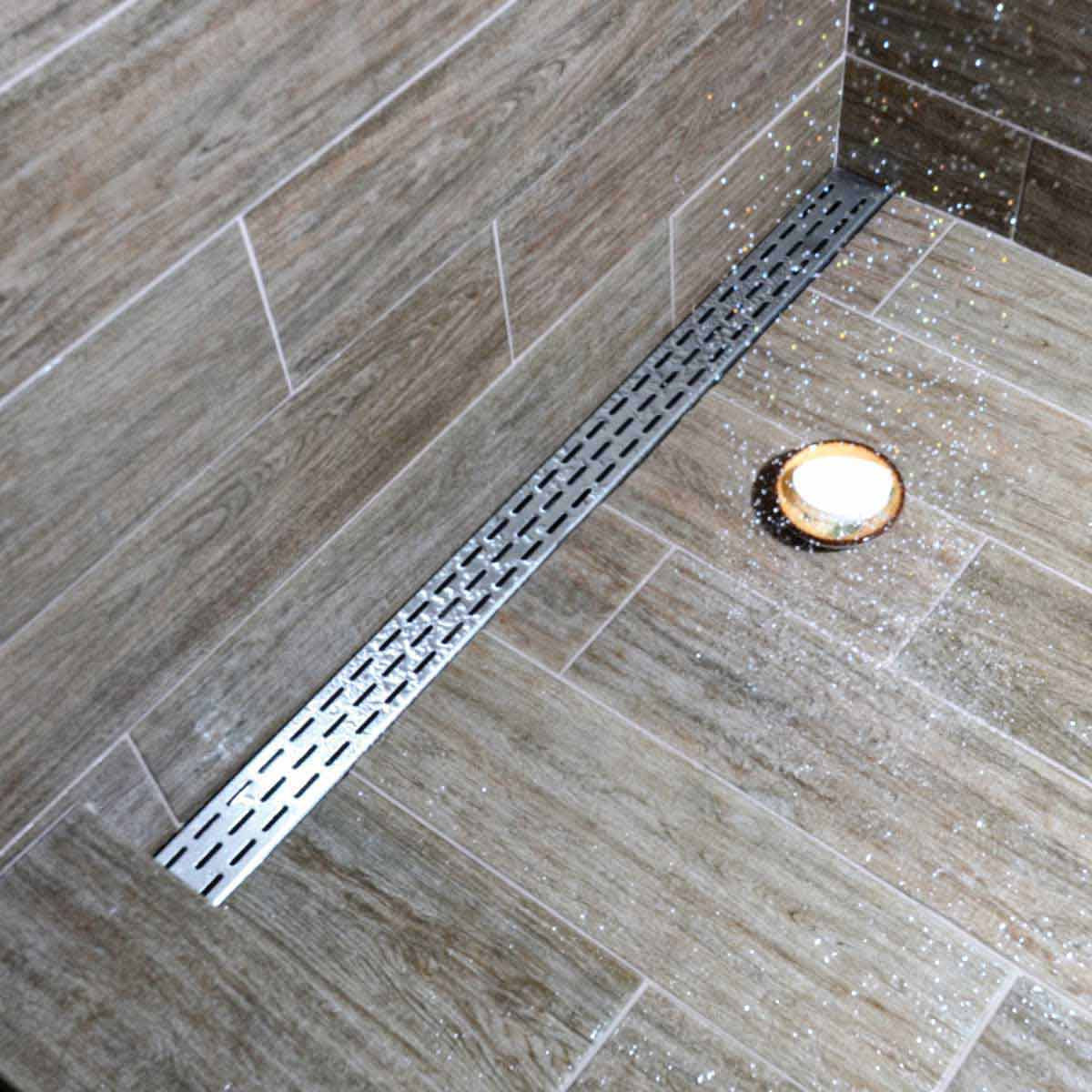

LATICRETE Hydro Ban Linear Drain is a low profile linear floor drain specifically designed for bonded waterproofing installations with HYDRO BAN waterproofing membrane. LATICRETE Hydro Ban Linear Drain allows for the use of large format tile or stone installations in a shower with a single plane slope to the drain.

Features

• Drain grates are now sold separately

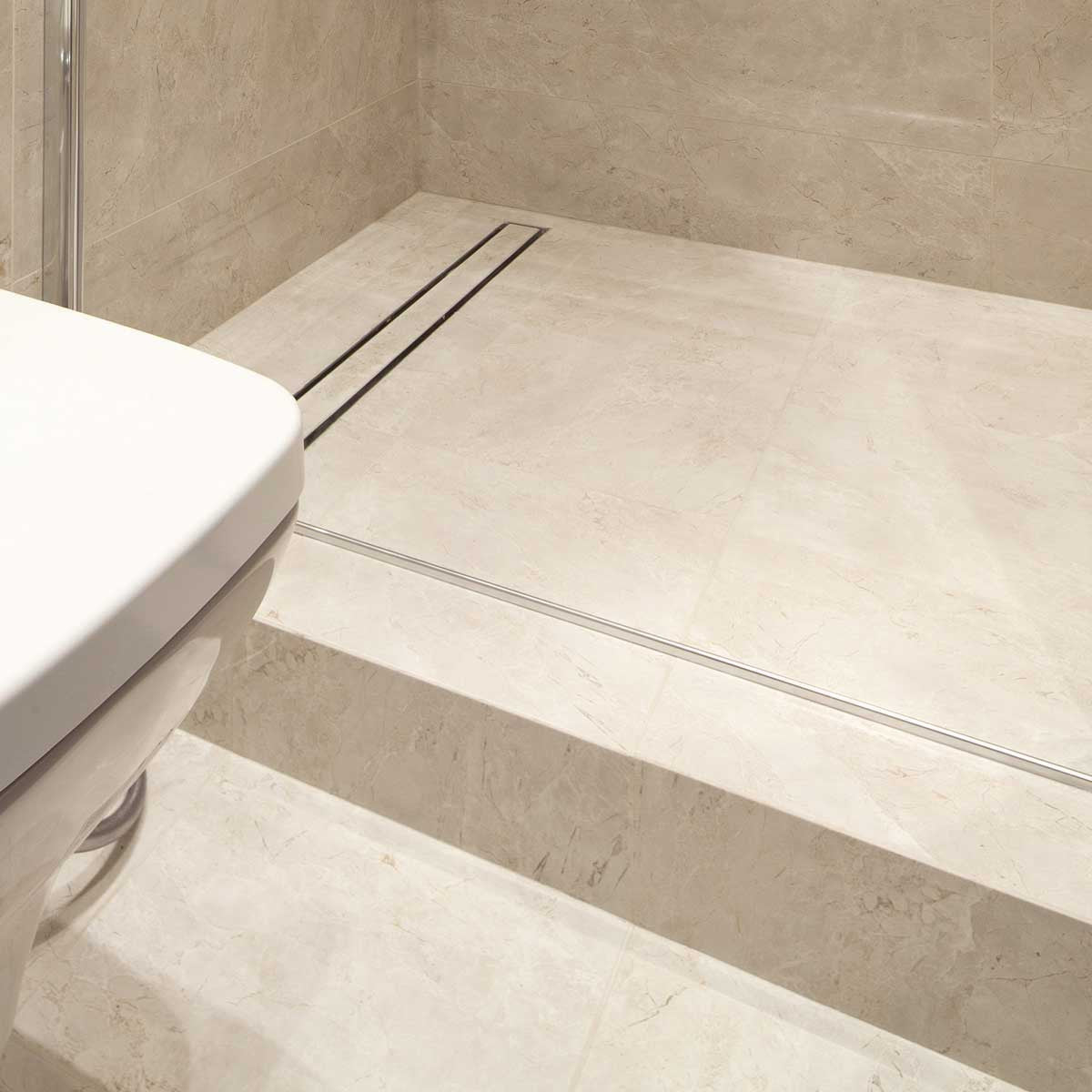

• Create a "invisible" drain by accepting the surrounding tile into the drain grate housing to provide an enhanced design feature

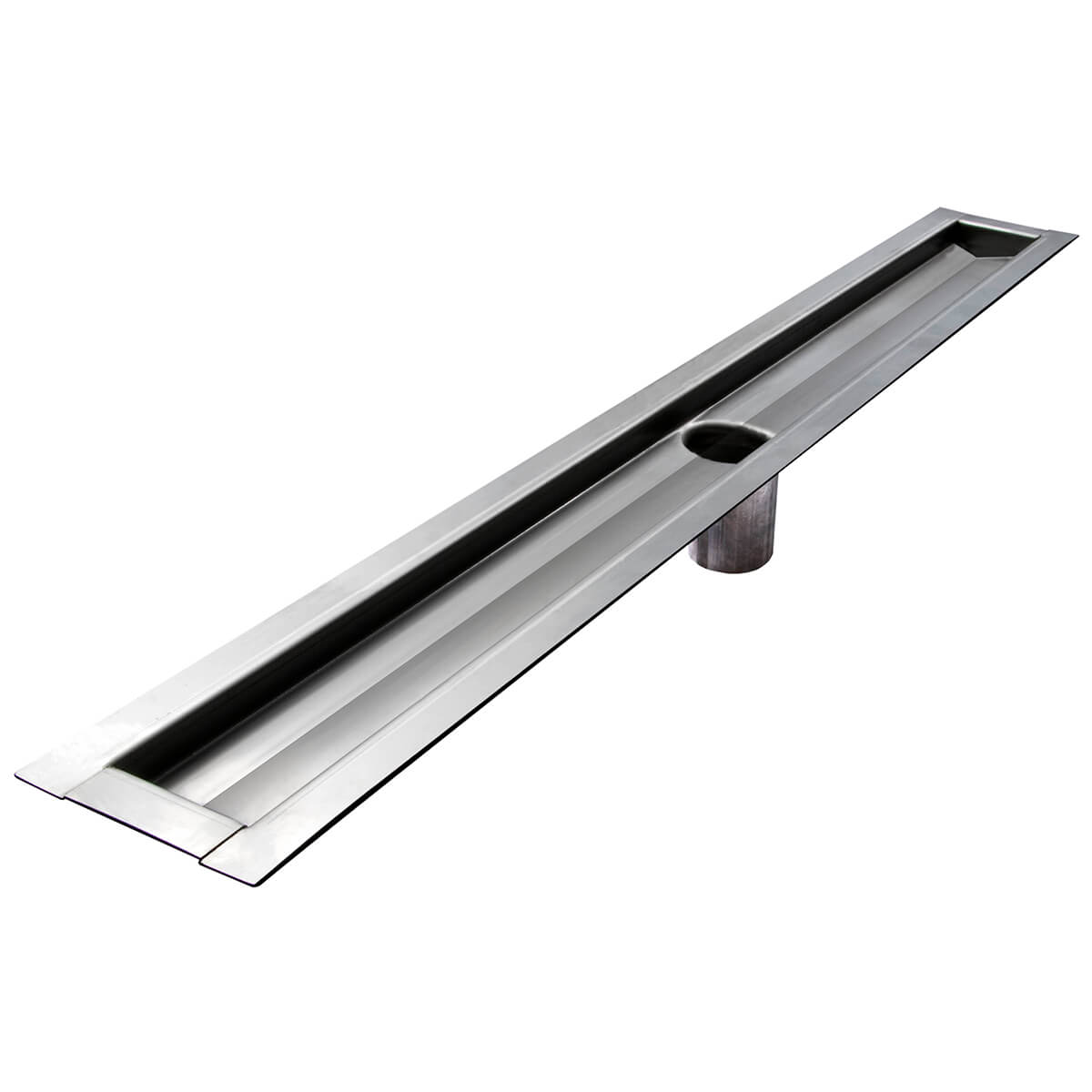

• "T" troughs have a standard vertical waste line

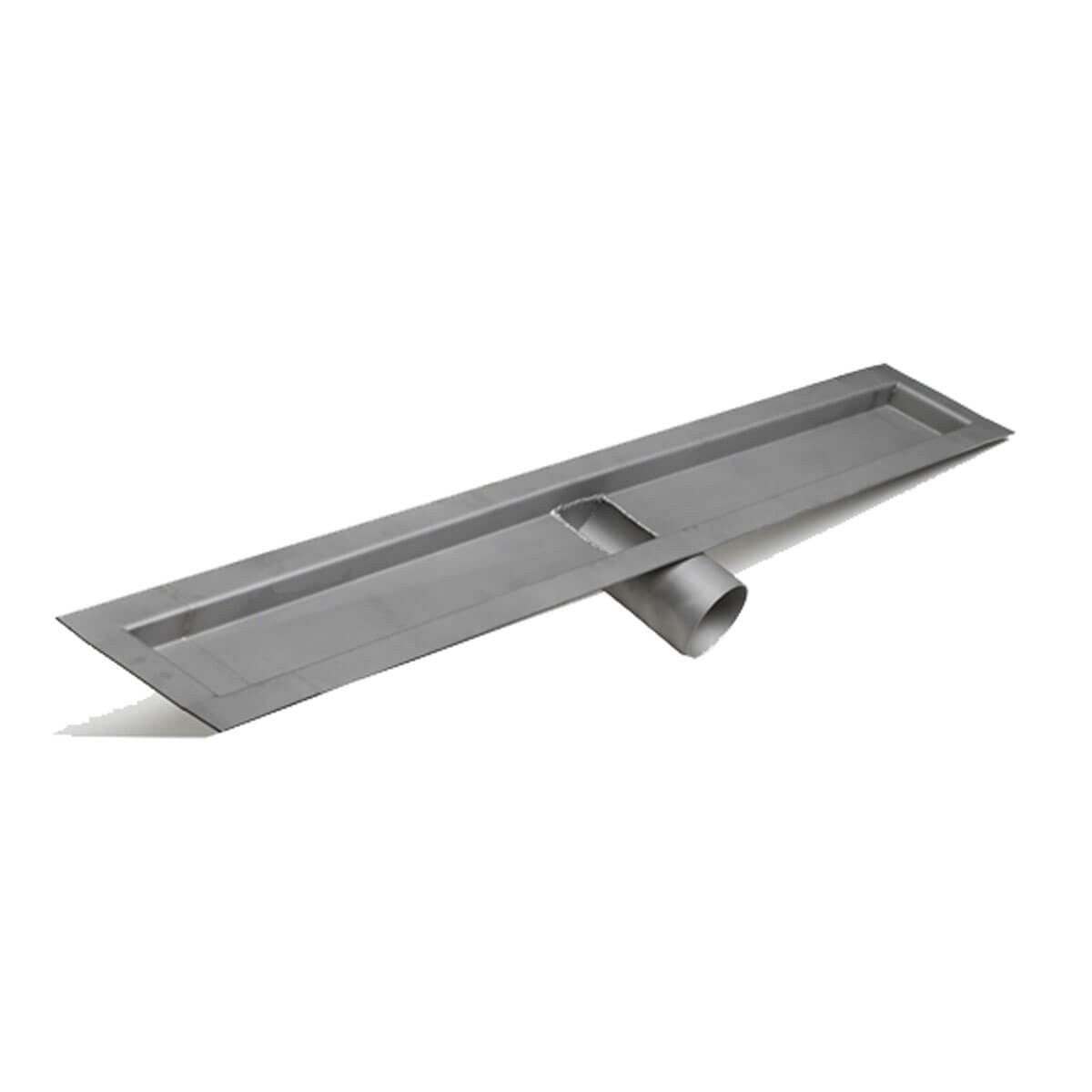

• Side outlet troughs have a horizontal side outlet waste line
• Threaded connector troughs are designed to connect to clamping ring drain installations
• Allows for use of large format tile

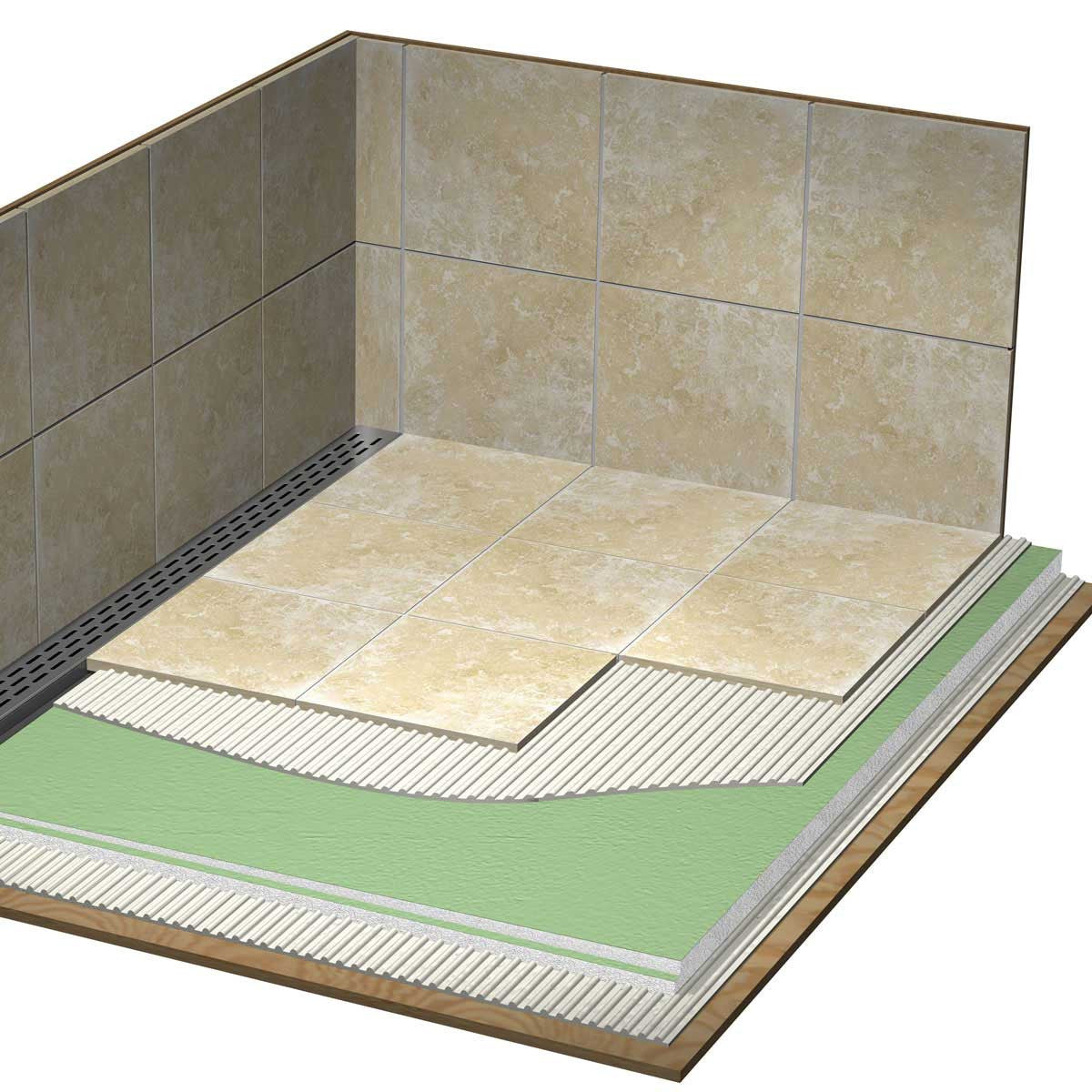

• Eliminates pre-slope and primary shower pan for a faster installation
• Made from heavy duty 304 stainless steel provides for long lasting performance
• No fabric or adhesive necessary to obtain waterproof surface

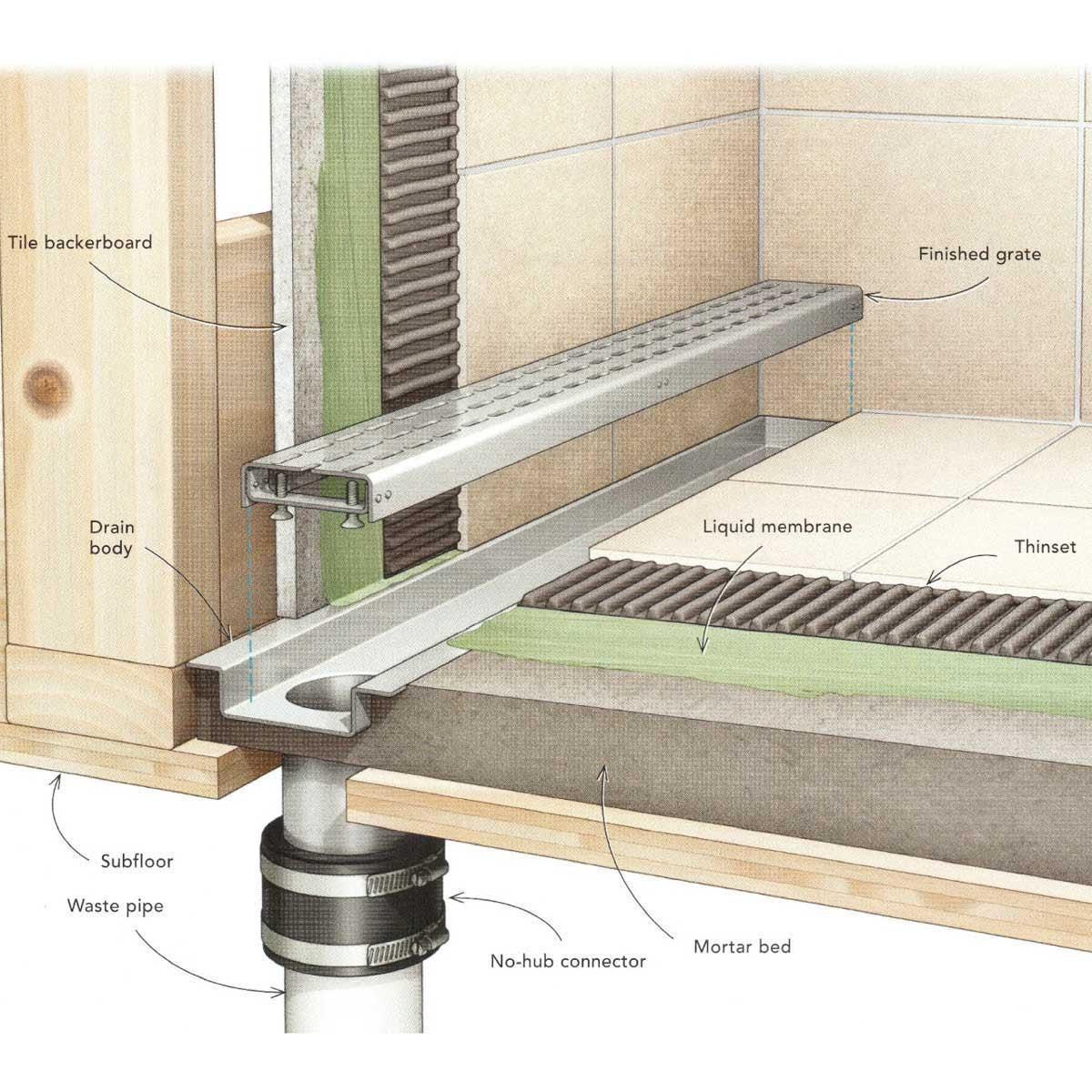

• HYDRO BAN waterproofing membrane bonds directly to stainless steel flange edge allowing for faster, easier installation
• Linear drain troughs are supplied with a hair strainer
• NOTE: Threaded connector and side outlet troughs are made to order, have a 2-4 week lead time and cannot be returned

Suitable Substrates

• Concrete
• Exterior Glue Plywood (Interior Only)
• Cement backer board
• Cement mortar beds
• Pre-sloped shower pans
