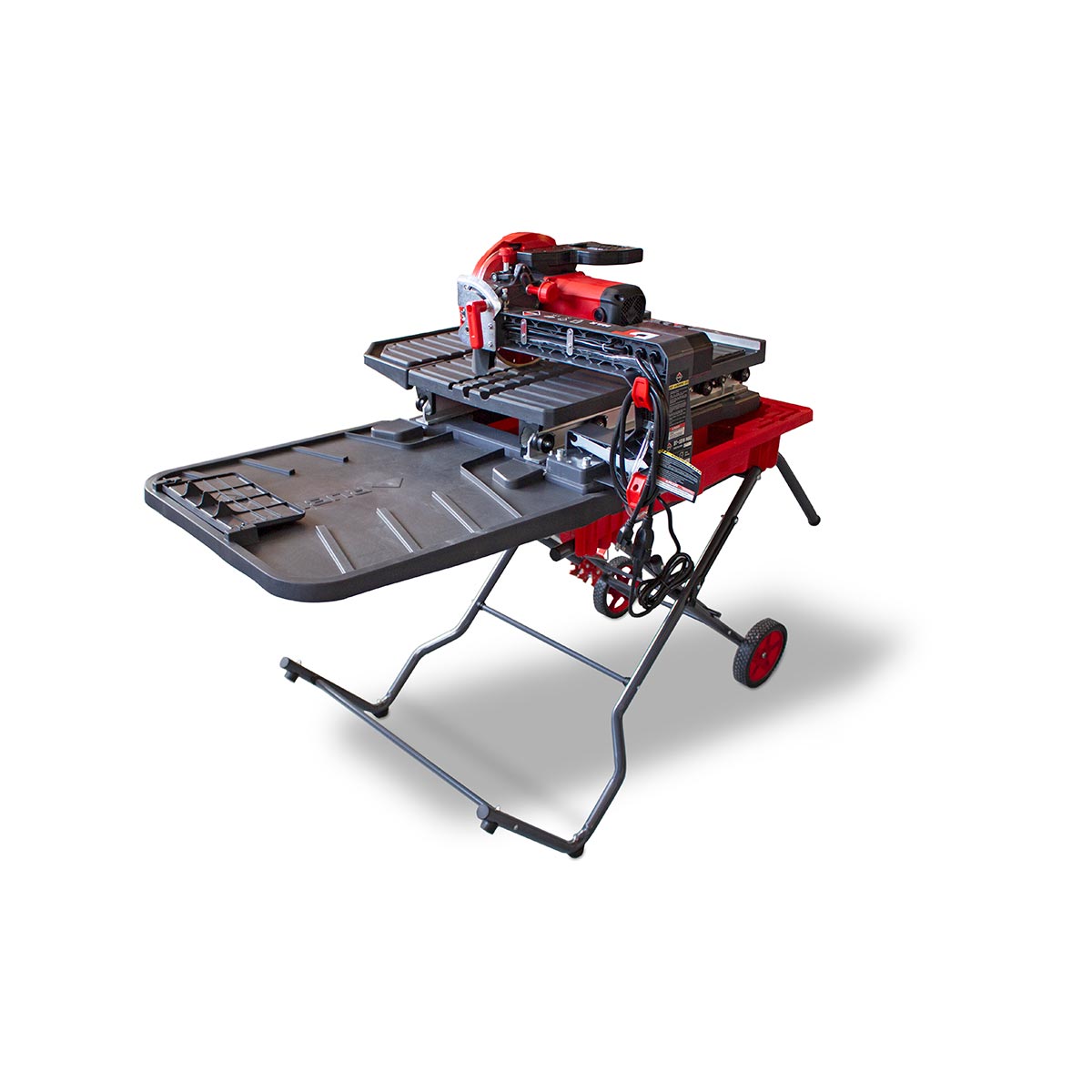

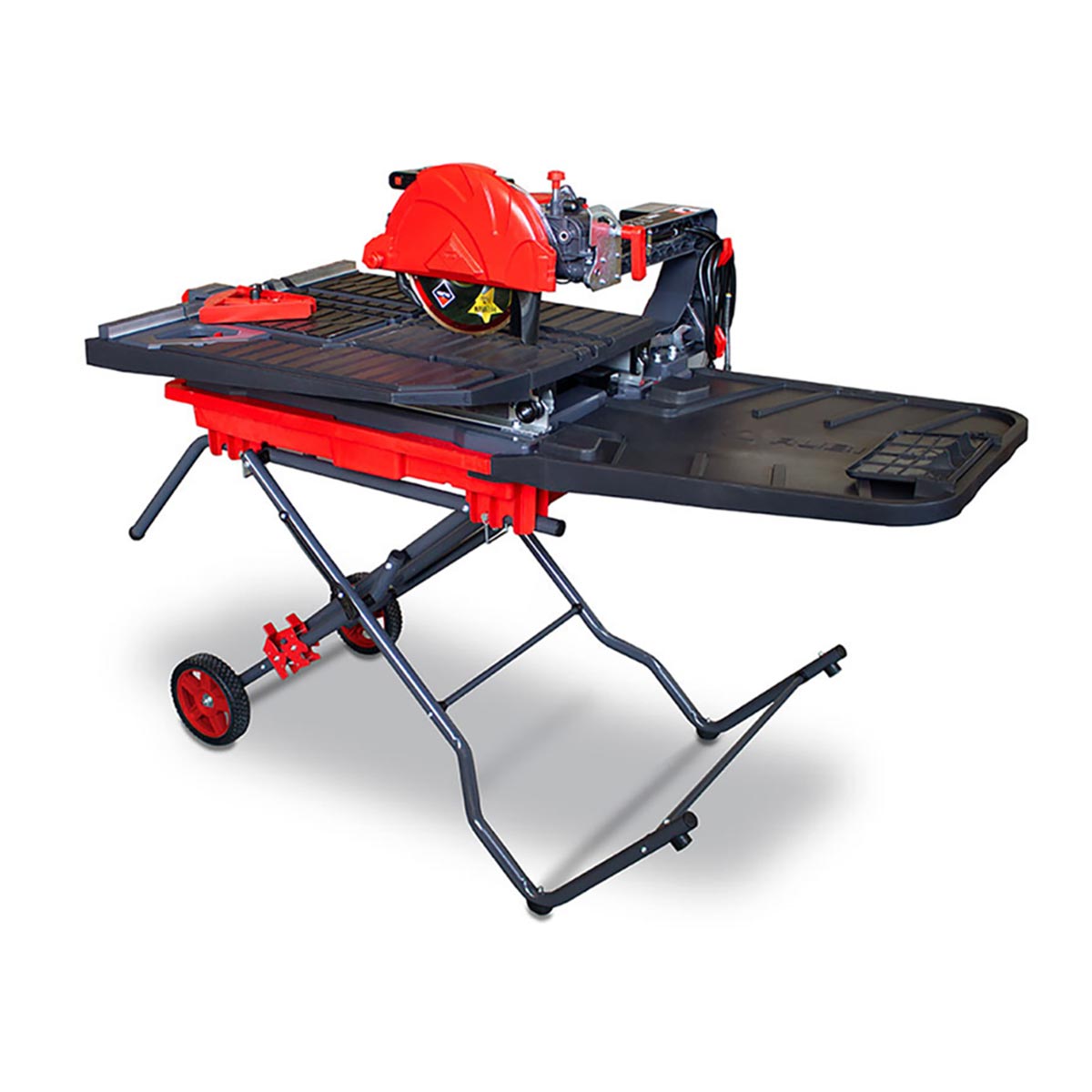

Rubi DT-10IN MAX Tile Saw
Rubi's brand new tile saw; the DT10-IN MAX is designed to handle professional tile jobs up to 36 x 36 inch tiles.
Features
- 36 inch rip cut and 25 inch diagonal cut will allow users to manage large tile with ease
- The plunge head works well for specialty and non-through cuts and also tilts for 0°, 22.5°, and 45° miter cuts that will add that professional edge
- Powerful 15 amp motor to cleanly cut through the toughest tile
- Advanced water spray system includes the Rubi Zero Dust water spray capture system to bring the finest water particles back to the tank and keep the work area clean

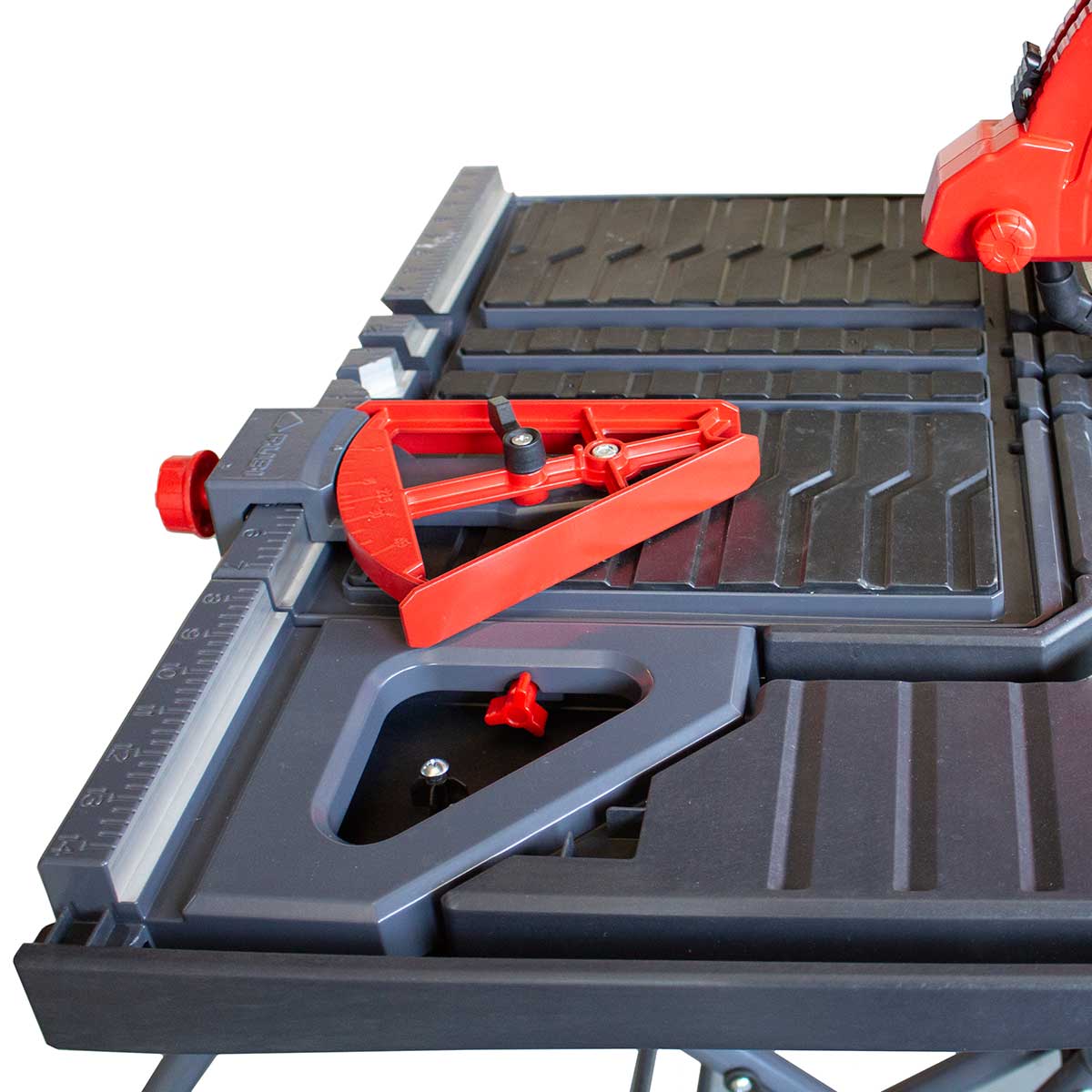

- Machined aluminum table with over mold glides along a patented rail system with the precision demanded by tile professionals
- Large 5-gallon water tub separates waste water from sediment to extend pump life and provide cleaner water to the blade
- The Python cooling system’s adjustable height brings water directly to the cut for improved blade cooling and a cleaner cut
- Adjustable laser guide enables fast alignment for custom diagonals, L-cuts, and non-through cuts by aligning the laser line with each mark for the cut
- Quick-Set stand helps setup and breakdown the saw quickly while the 8 inch wheels provide mobility for the entire saw across the jobsite in one simple trip
- Patented rail design allows for fast table adjustments and help protect the table roller while cleaning the saw
- The tool less arbor lock and onboard tool storage makes blade changing easy
- Tool less removal of the saw from the stand makes it easy to transport and store in tight spaces
- Included table extensions provide the needed support for oversized tile
- Included storage straps helps hold the water trays and side extension table in place to move the entire saw in one trip
What's Included?
- DT10IN Max Tile Saw with Quick-Set Stand
- 10" Arrowhead Premium Diamond Blade
- 45 Degree Angle Guide
- Table Extensions
- Storage Straps
- Operators Manual
|
DT10IN Max Specifications |
Voltage |
120V / 60 Hz |
RPM |
4000 |
Saw Amperage |
15 amps |
Length of Cut |
36" (508mm) |
Diagonal Length of Cut |
25" (330mm) |
Cutting Height |
3.54" (95mm) max |
Blade Capacity |
10"/ 180mm (5/8" arbor) |
Electrical Cord Length |
6.7 ft (2.05m) |
Saw Dimensions |
63" x 36.8" x 48.4" (1600 x 935 x 1230 mm) |
Weight |
76 lbs / 34.5 kg |
|
