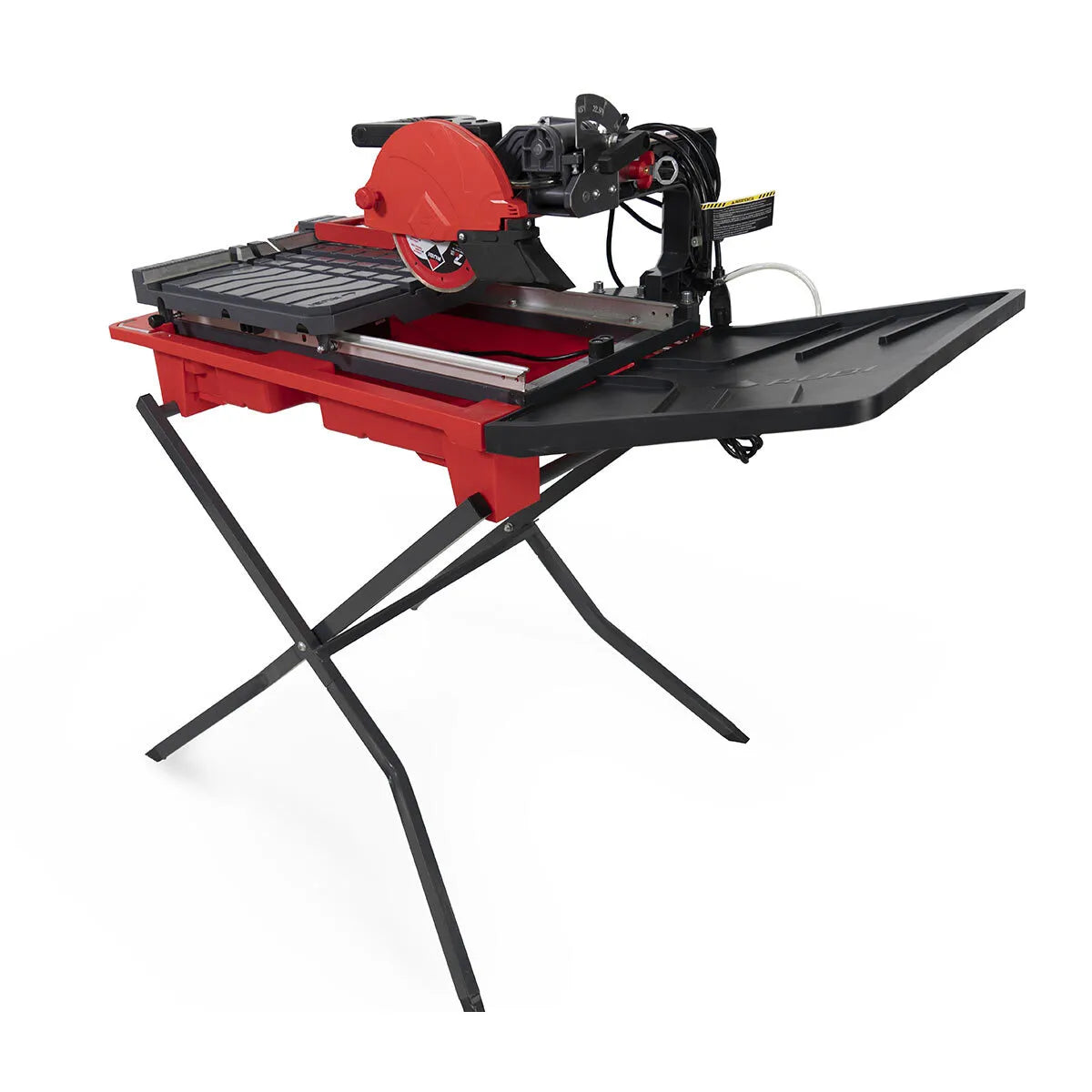

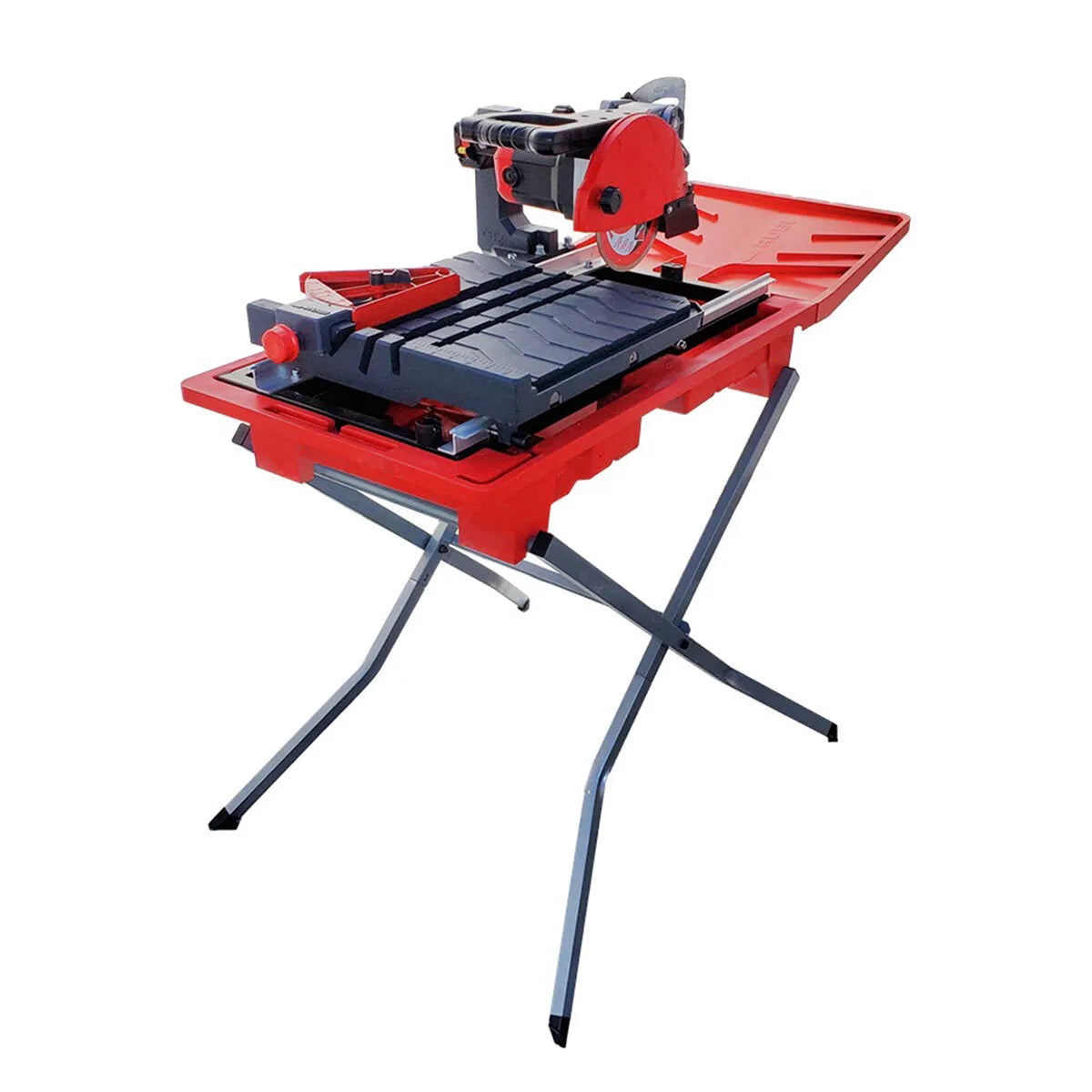

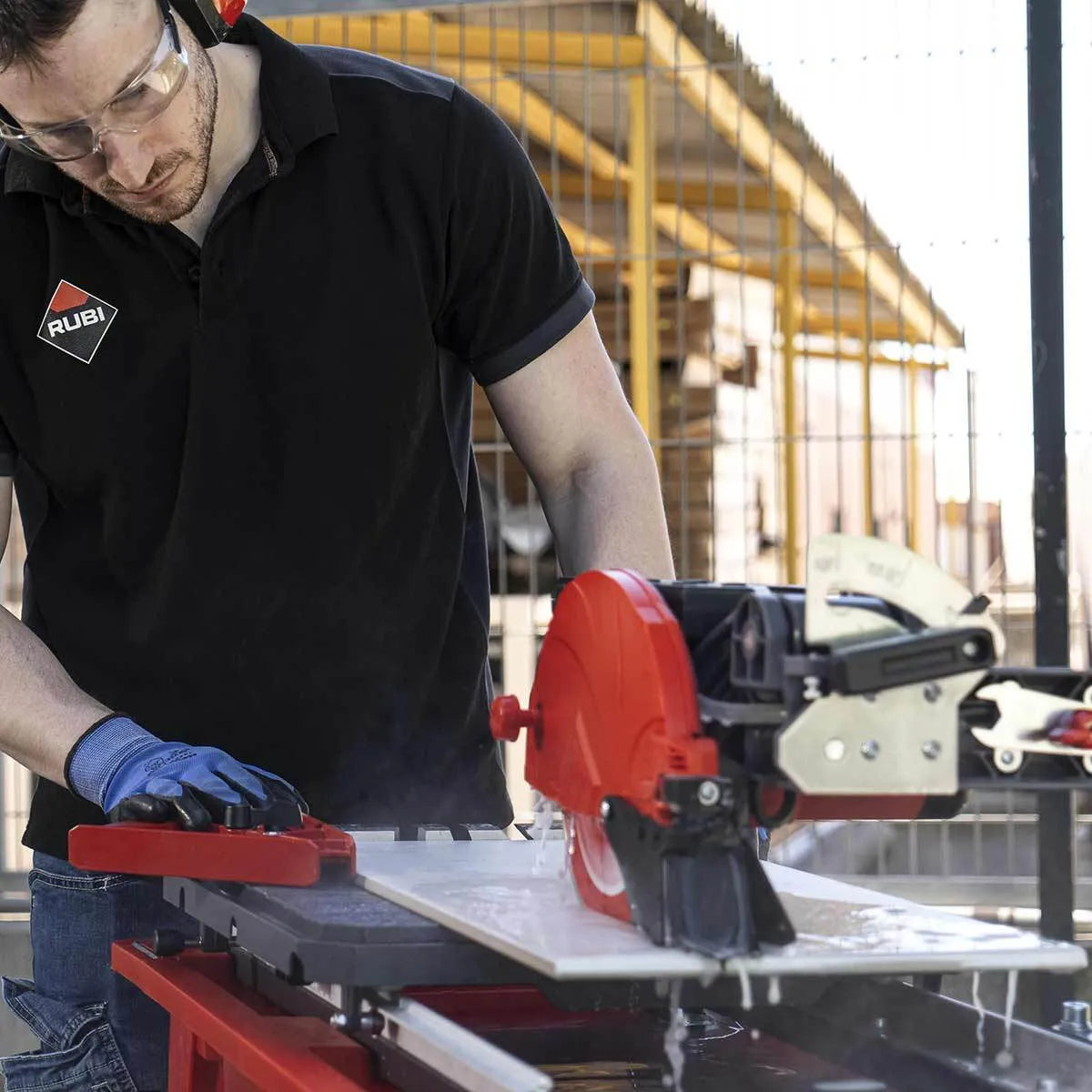

Rubi DT-7IN MAX Electric Cutter

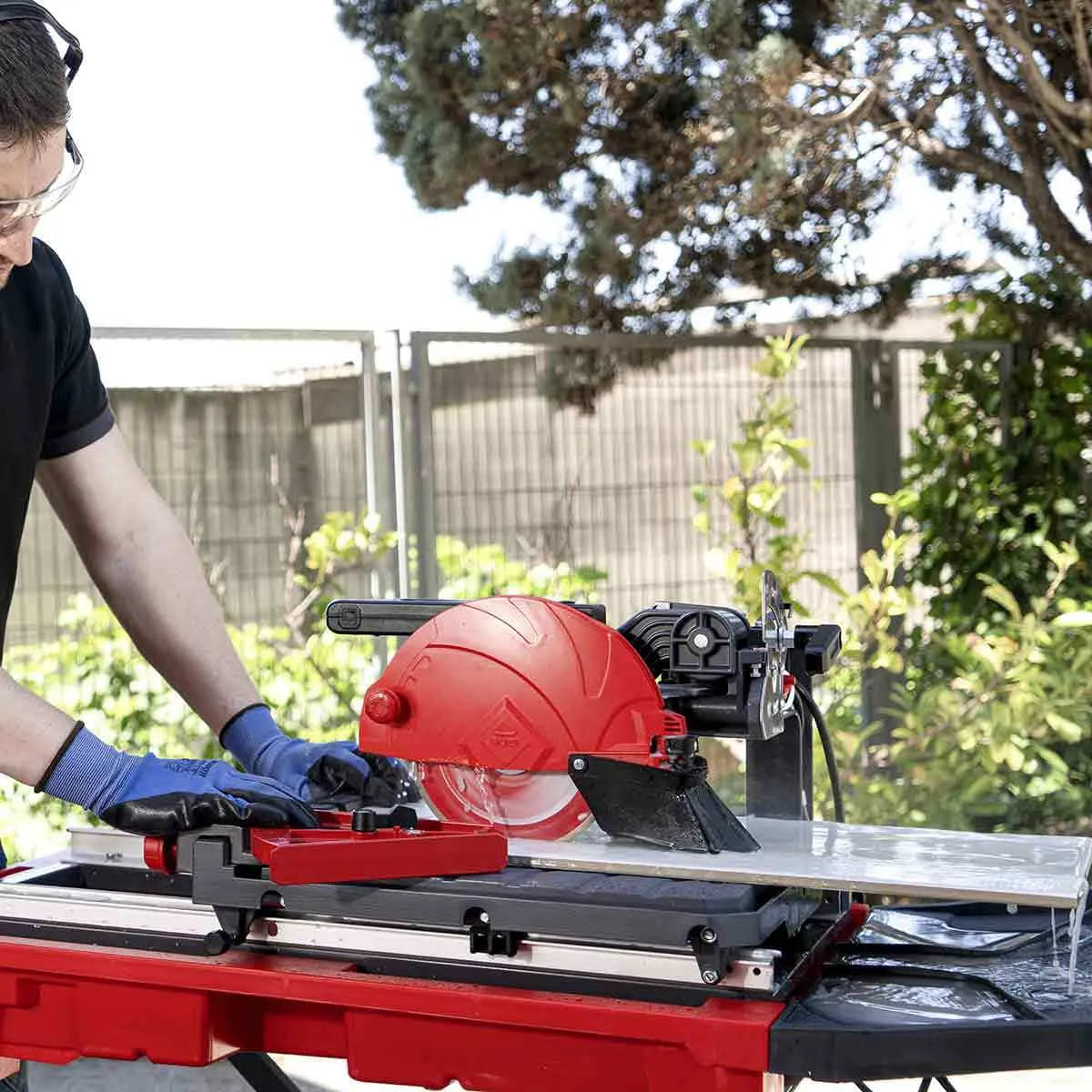

The RUBI DT-7IN MAX electric tile cutter is a mobile table PRO cutter, suitable for cutting any type of ceramic tile, as well as natural or sintered stone
Features
- Portable over-head 7" Tile Saw

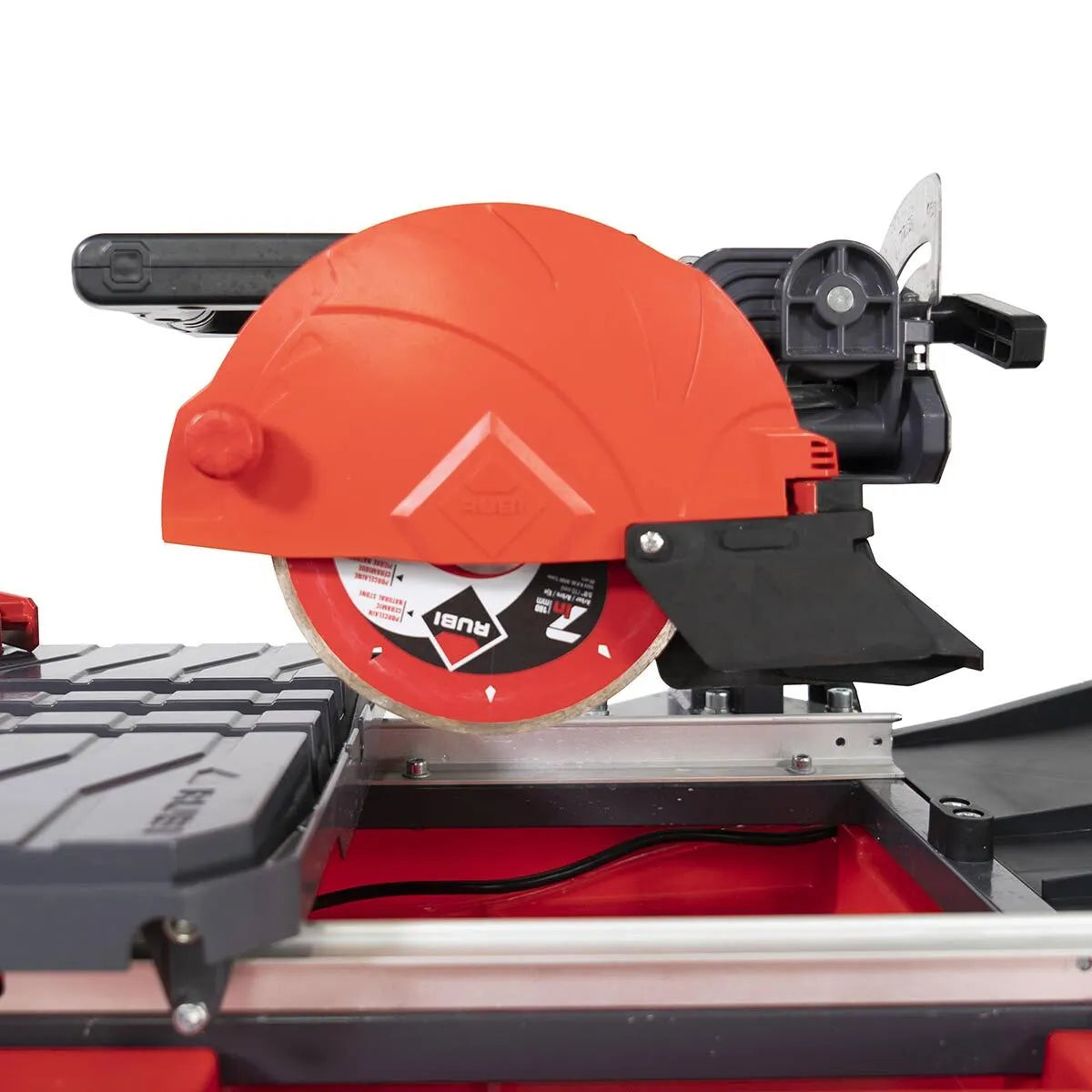

- Plunging head which tilts for 0°, 22.5°, and 45° miter cuts
- Recommended for cutting ceramic, porcelain, stone and glass tile
- 24" max rip cut capable

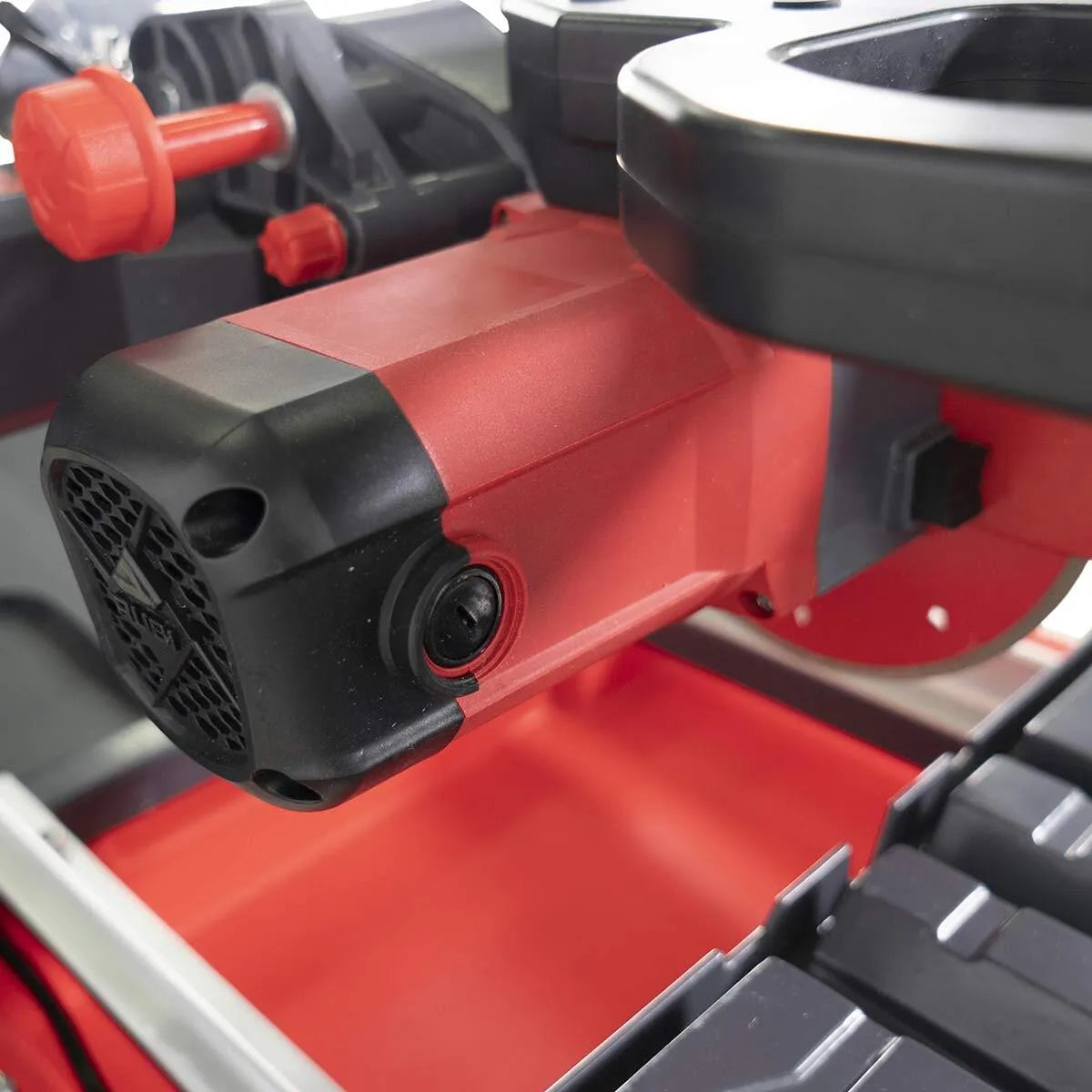

- Powerful 10 Amp universal motor with replacebale brushes
- Mobile cutting head that allows us to adjust the cutting height to the needs of the material
- Moving table system that is made out of aluminum, for greater durability (resistance to oxidation) and greater lightness in the total assembly

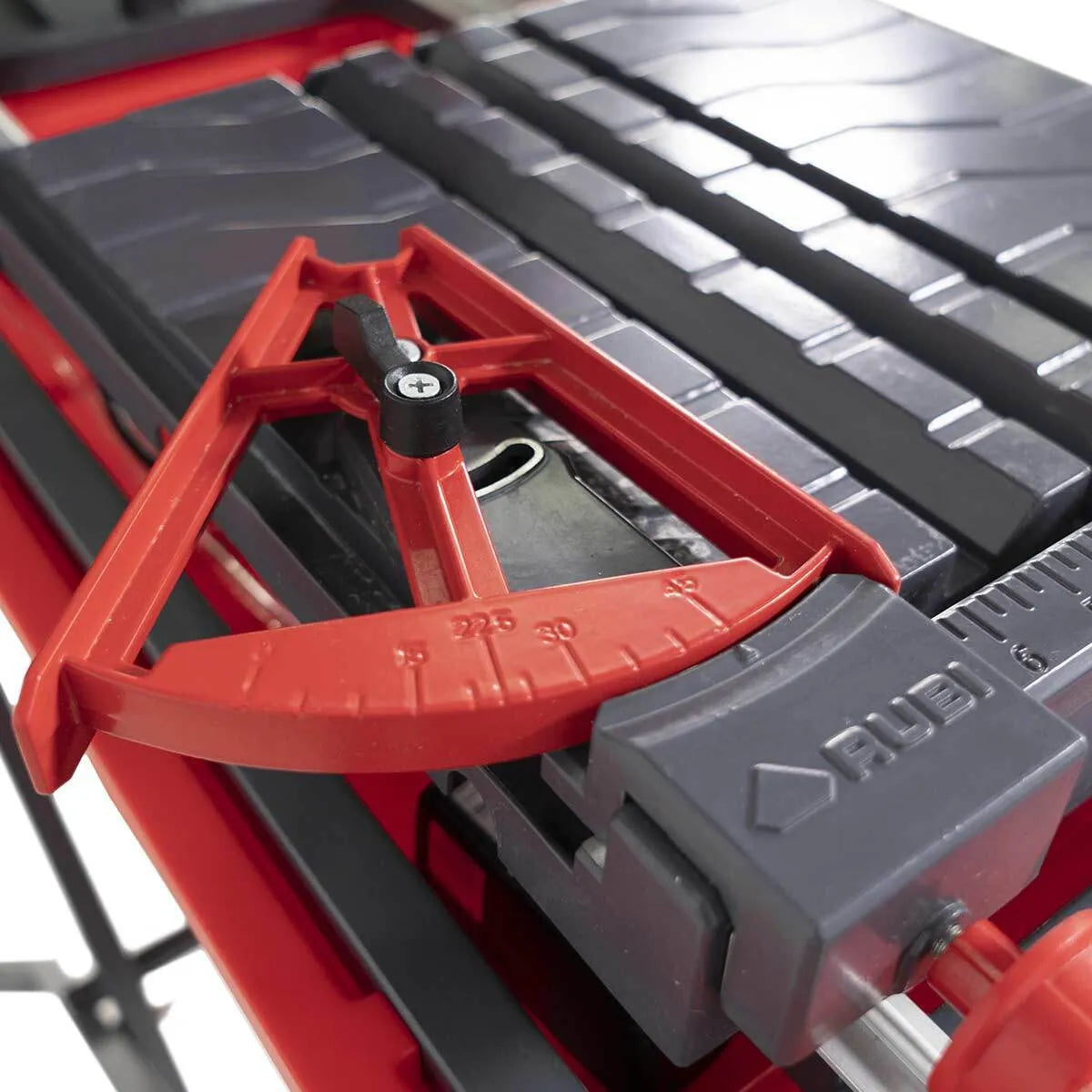

- Practical angle guide that allows user to make it easier to block the material when it is necessary to make repetitive cuts
- Features a system that optimizes the cooling of the disk, extending its useful life, and reducing the loss of water due to splashes
- Additional capacity to the rear tray, which not only allows user to work in a cleaner environment, but also increased water reuse, reducing the volume of downtime needed to refill the 4.27-gallon tank
- Easier transport thanks to the lightweight, 56 pound saw

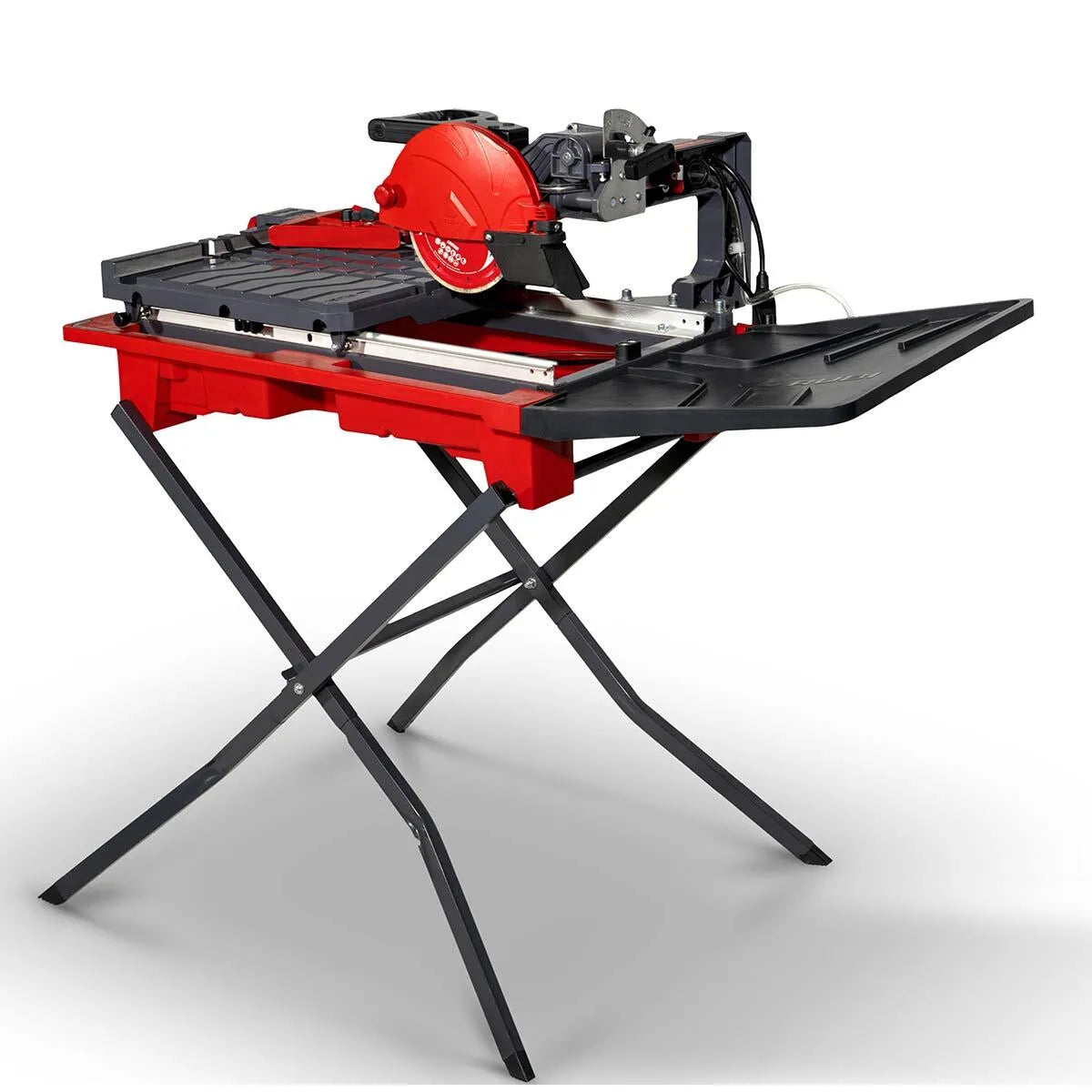

- Folding stand with a highly robust tubular steel structure
- Machine can be handled in 3 individual parts: the stand, the water pan, and the cutter frame
- The perfect ccutter for remodeling projects
What's Included?
- DT-7IN Max Tile Saw
- 7" Arrowhead Premium Diamond Blade
- Foldable tubular steel stand
- Angle Guide
- Installation tools
- Operators Manual
|
DT-7inIN Max Specifications |
Voltage |
120V / 60 Hz |
RPM |
6000 |
Saw Amperage |
10 amps |
Length of Cut |
24" (609mm) |
Diagonal Length of Cut |
18" (457mm) |
Max Thickness |
2-1/4" (57mm) max |
Blade Capacity |
10"/ 180mm (5/8" arbor) |
Flanges |
1.81" (46mm) |
Saw Dimensions |
48" x 23.2" x 44.5" (1220 mm x 590 mm x 1130 mm) |
Weight (with stand) |
56.2 lbs / 25.5 kg |
|
